AAMA Designation
AW100

ASTM F588 (Forced Entry)
Grade 10

Water Resistance
15 PSF

Maximum Sash Size
60" x 36"

Operating Hardware
Cam handles
4 bar hinges

Optional Screens
Wicket screens
Fiberglass or aluminum mesh

Frame Depth
4 1/2"

Typical Material Thickness
0.094" with tubular design

Frame Construction
Miter - crimp & epoxy weld on frames

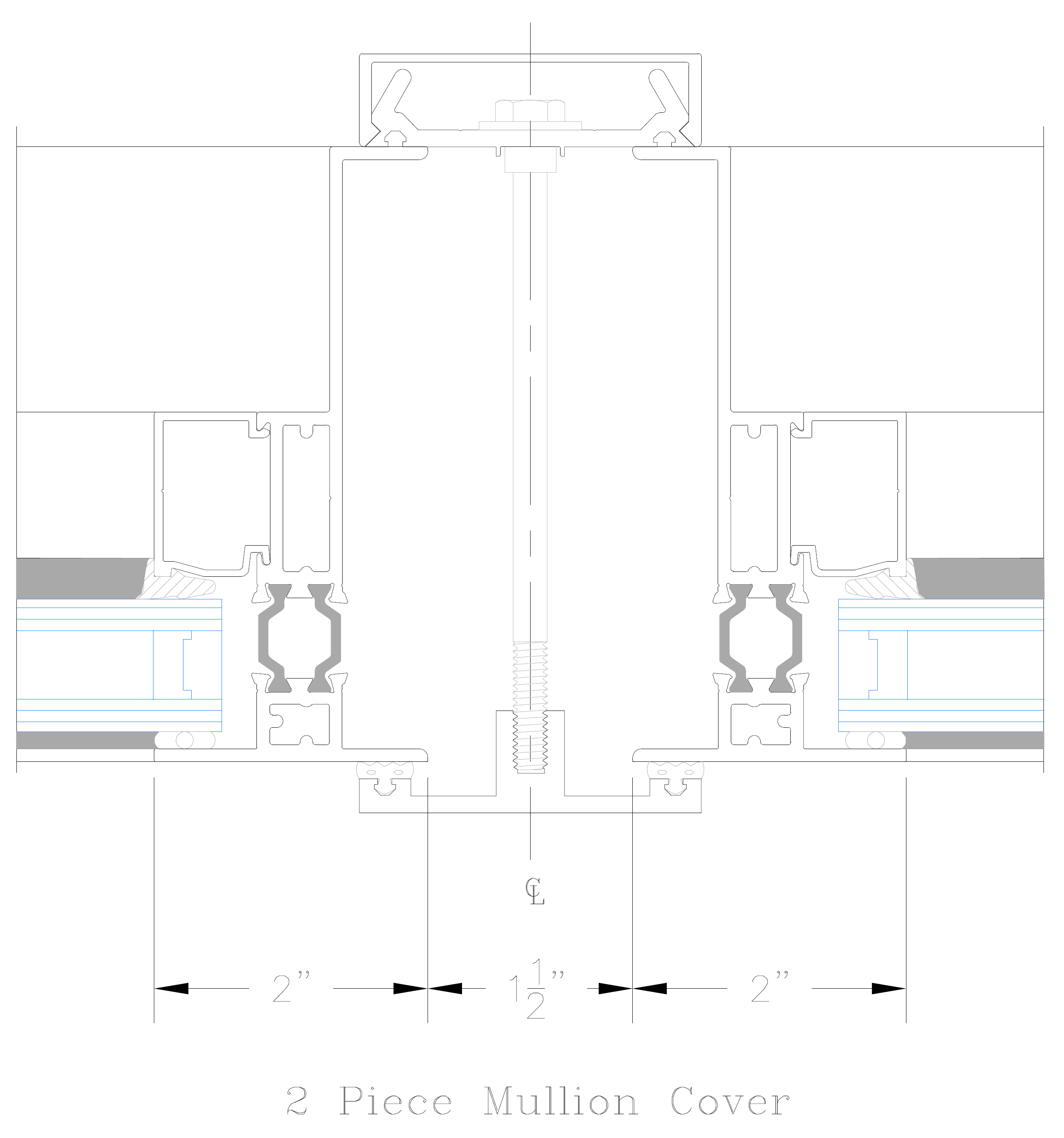

Mortise & tenon on mullions

Sash Construction
Miter - crimp & epoxy weld

Glazing Thickness
1" and 1 3/4"

Project-out vent with cam handles
Minimum Size - 14" wide x 14" high
Maximum Size - 60" wide x 36" high

Project-out vent with pushbars
Minimum Size - 23" wide x 14" high
Maximum Size - 60" wide x 36" high

Project-out vent with roto operators
Minimum Size - 24" wide x 14" high
Maximum Size - 60" wide x 36" high
