Casement
Nottingham Elementary School
Nottingham Elementary School
International Masonry Institute
Valley View Elementary School

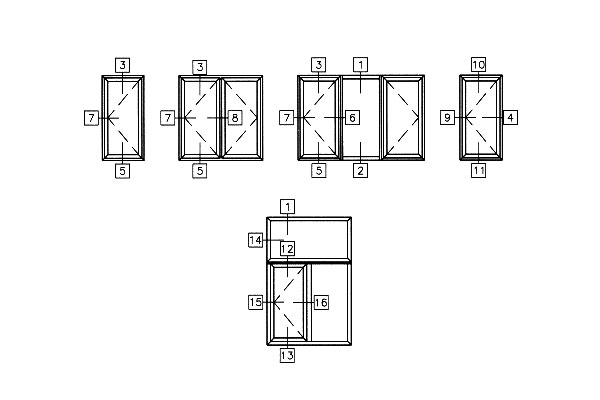

Drawings
Click on a number for detailed drawings
DeSCo 2500 Series Windows
Specs
AAMA Designation
C-HC60; C-AW60

ASTM F588 (Forced Entry)
Grade 40

CRF Rating
54

Water Resistance
12 PSF

Maximum Sash Size
36" x 60"

Operating Hardware
Roto Operators and Locking Handles; Butt Hinges

Optional Screens
Extruded Frame; Fiberglass or Aluminum Mesh

Frame Depth
2 1/2"

Typical Material Thickness
.094"

Frame Construction
Miter-Crimp & Epoxy weld on Frames
Mortise & Tenon on Mullions

Sash Construction
Miter-Crimp & Epoxy weld

Glazing Thickness
1/4" - 2"
Hardware Optional Standard
Cam Handles
Custodial Locks
Locking Handles
4-Bar Hinges
Roto Operators
Butt Hinges
Egress Hardware
Friction Adjustors
Limited Opening Device
Limit Stops
Screens
Documents
