Fixed

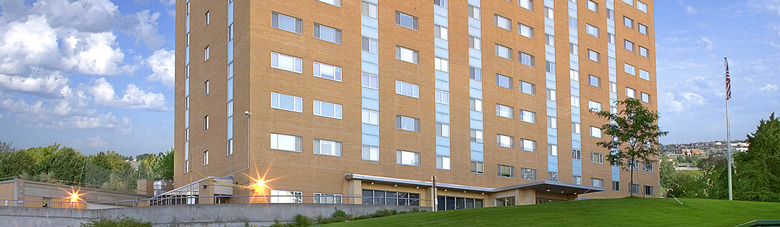

Masonic Manor
Masonic Manor

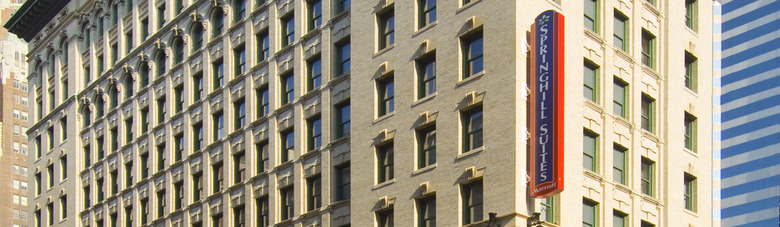

Springhill Suites

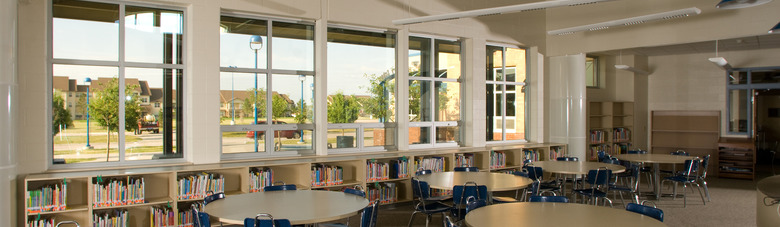

Valley View Elementary School

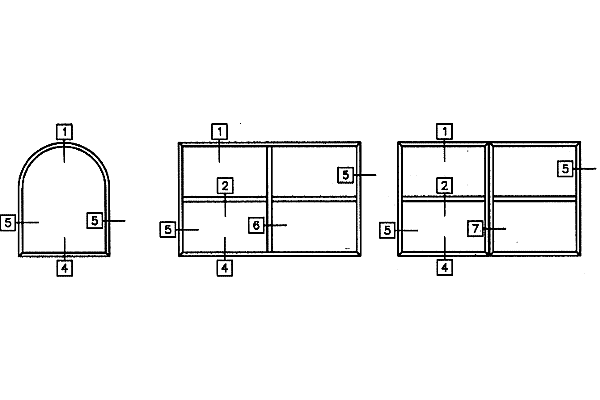

Drawings
Click on a number for detailed drawings
DeSCo 2500+4 Series Windows
Specs
AAMA Designation
C-HC60; C-AW60

ASTM F588 (Forced Entry)
Grade 40

CRF Rating
54

Water Resistance
12 PSF

Maximum Sash Size
36" x 60"

Operating Hardware
Roto Operators and Locking Handles; Butt Hinges

Optional Screens
Extruded Frame; Fiberglass or Aluminum Mesh

Frame Depth
4"

Typical Material Thickness
.094"

Frame Construction
Miter-Crimp & Epoxy weld on Frames
Mortise & Tenon on Mullions

Sash Construction
Miter-Crimp & Epoxy weld

Glazing Thickness
1/4" - 2"
Hardware Optional Standard
N/A
