AAMA Designation
AW100

ASTM F588 (Forced Entry)
Grade 10

Water Resistance
15 PSF

Maximum Sash Size
60" x 36"

Operating Hardware
Cam handles
4 bar hinges

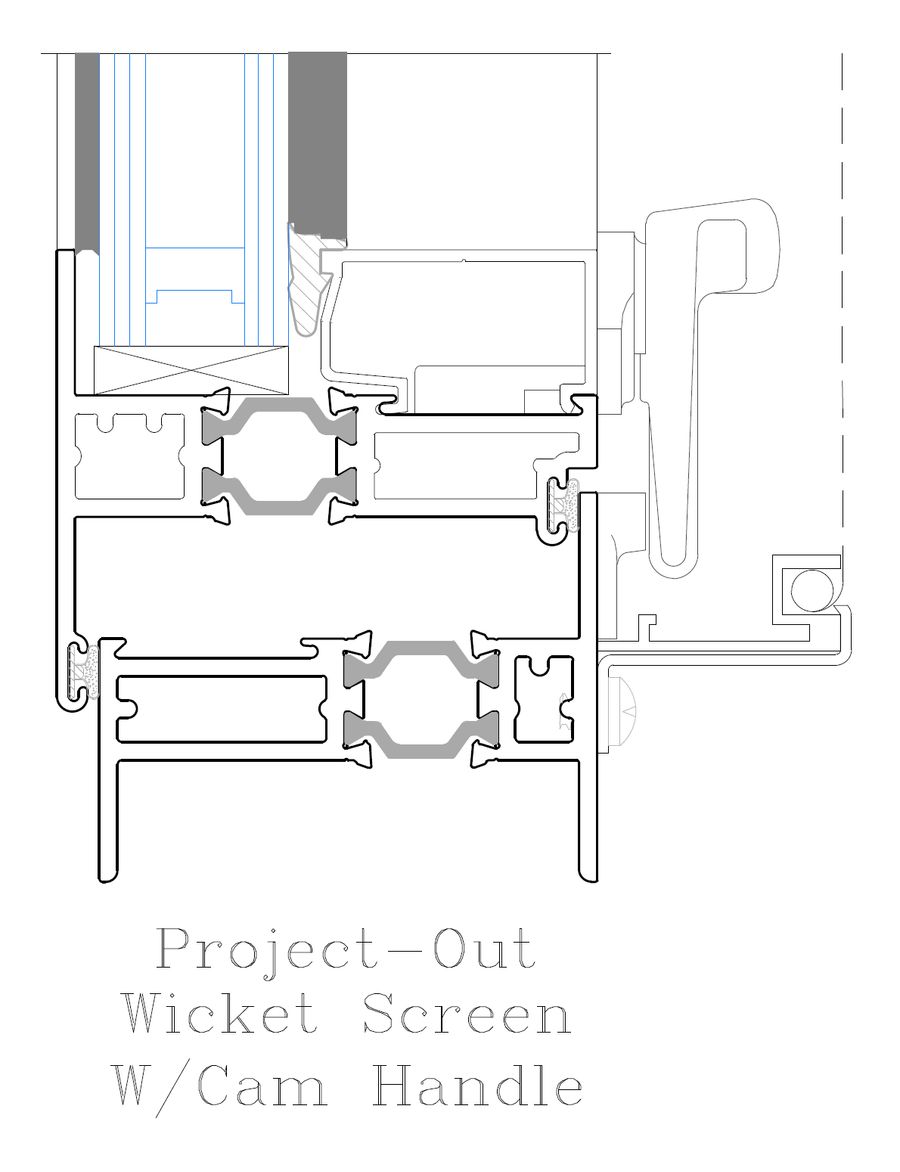

Optional Screens
Wicket screens
Fiberglass or aluminum mesh

Frame Depth
2 5/8" (65mm)

Typical Material Thickness
0.094" with tubular design

Frame Construction
Miter - crimp & epoxy weld on frames
Mortise & tenon on mullions

Sash Construction
Miter - crimp & epoxy weld

Glazing Thickness
1/4" and 1"

Project-out vent with cam handles
Minimum Size - 14" wide x 13 3/4" high
Maximum Size - 60" wide x 36" high

Project-out vent with pushbars
Minimum Size - 23" wide x13 3/4" high
Maximum Size - 60" wide x 36" high

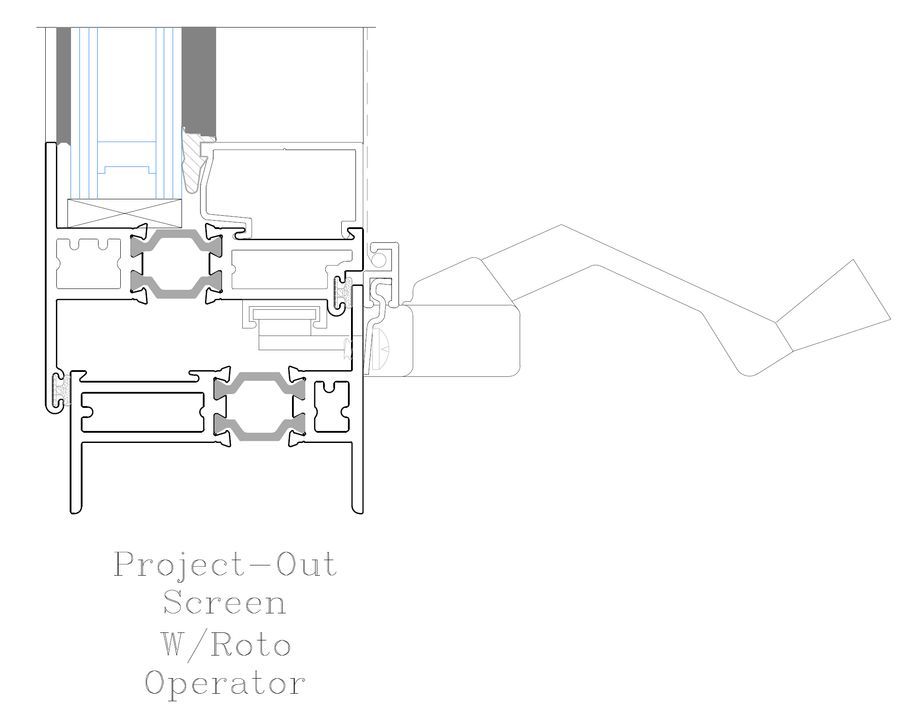

Project-out vent with roto operators
Minimum Size - 21 3/4" wide x 16" high
Maximum Size - 60" wide x 36" high

Contact your DeSCo representative for additional technical information.
